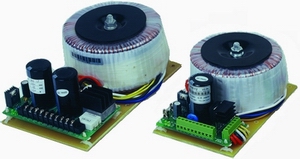

The PS series linear power supplies are specifically designed to power stepping and servo systems. They have 3 group main output connectors for stepping & servo drives, and 1 auxiliary output (5V/1A, or 12V/1A) for customer use. By selecting appropriate model, one PS power supply can supply 1-3 drivers, saving the average cost of per shaft. When stepping or servo system running, the driving current varies extremely fast, which is belonged to inductive load, herein the drives and power supplies would be damaged easily if used normal power supplies. PS series supplies are capable of delivering current to drives without affecting the reliability due to their unregulated specialty and bulky capacitors.

• Download Datasheet PDF

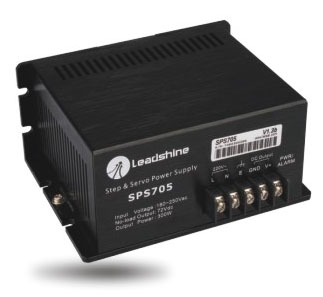

The SPS series switch mode power supplies are specifically designed to power inductive loads found in stepping & servo motors. The normal regulated switching power supplies popular in the market are usually working with bad variability and low efficiency when used in stepping or servo driving, this is because that the conventional switching power supplies are designed for the constant and unvarying loads of circuit boards. Whereas, when the stepping or servo system running, the driving current varies extremely fast, which is belonged to inductive load, herein the drivers and power supplies would be damaged easily. This series supplies are capable of delivering current to drivers without affecting the reliability due to their unregulated specialty and bulky capacitance. By selecting correct model, one supply can supply 1-3 drivers and so the average cost of per shaft is saved.

• Download Datashee PDF

The SPS series regulated switch mode power supplies are specifically designed to power inductive loads found in stepping & servo motors. The normal regulated switching power supplies popular in the market are usually working with bad variability and low efficiency when used in stepping or servo driving, this is because that the conventional switching power supplies are designed for the constant and unvarying loads of circuit boards. Whereas, when the stepping or servo system running, the driving current varies extremely fast, which is belonged to inductive load, herein the drivers and power supplies would be damaged easily. This series supplies are capable of delivering current to drivers without affecting the reliability due to their special design. By selecting correct model, one supply can supply 1-3 drivers and so the average cost of per shaft is saved.

• Download Datasheet PDF

For more information Contact Us.
